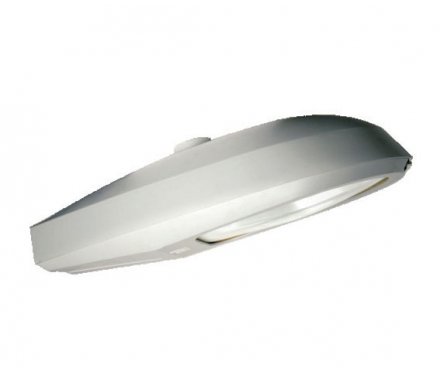

Putra G - HID Road and Street Luminaire

Mechanical Specifications
+ Luminaires for high pressure mercury vapour lamp, high pressure sodium lamp,metal halide lamp or compact fluorescent lamp.
+ Housing of die-cast aluminium alloy, painted electrostatically in silver colour or in twin colours on request.
+ Adjustable reflector from anodized high purity aluminium (99,8%).

Optical Specifications
+ Porcelain lampholder with horizontal and vertical mechanical focusing device.
+ Gaskets made of anti-age weather resistant silicon rubber.
+ Connection to power supply via a cable gland with protection IP65.
+ Teflon filter for decompressing the luminaire.
+ Gear tray of galvanized steel for Class I or of a special thermoplastic material for Class II
+ For Class II electrical safety switch disconnects the main power supply on opening the luminaire in maintenance.

Technical & Electrical Specifications
+ The luminaires are in accordance with regulations EN 60598-2-3.
+ Connection for operation on 220V-50Hz with a conventional control gear and power factor correction capacitor.

Options
+ Grey, Blue colour.
