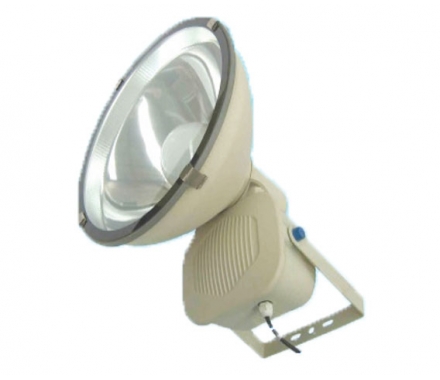

HID Series Floodlight Luminaires

Mechanical Specifications
+ Floodlightsfor metal halide lamps (HIT).
+ Diecast aluminum body with primary alloy and low copper content with an high weather proof rating, electrostatically painted in black colour, complete with thermally isolated housing for the ignitor or the whole control gear when the lamp is metal halide.
+ Silicon rubber gasket.

Optical Specifications
+ Tempered safety glass suitable for high temperature and thermal scocks.
+ Bracket made of galvanized painted steel with index for vertical orientation.
+ Control gear base from galvanized steel.
+ For Class II electrical safety switch disconnects the main power supply on opening the luminaire in maintenance.

Technical & Electrical Specifications
+ The floodlights are in accordance with regulations EN 60598-1 and EN 60598-2-5.
+ Connection for operation on 220V-50Hz with conventional control gear and power factor correction capacitor.

Options
+Symmetrical reflectorfrom anodised high purity aluminum (with baffle to avoid the direct glare), peened for medium- wide beam and specular for medium-narrow beam.
